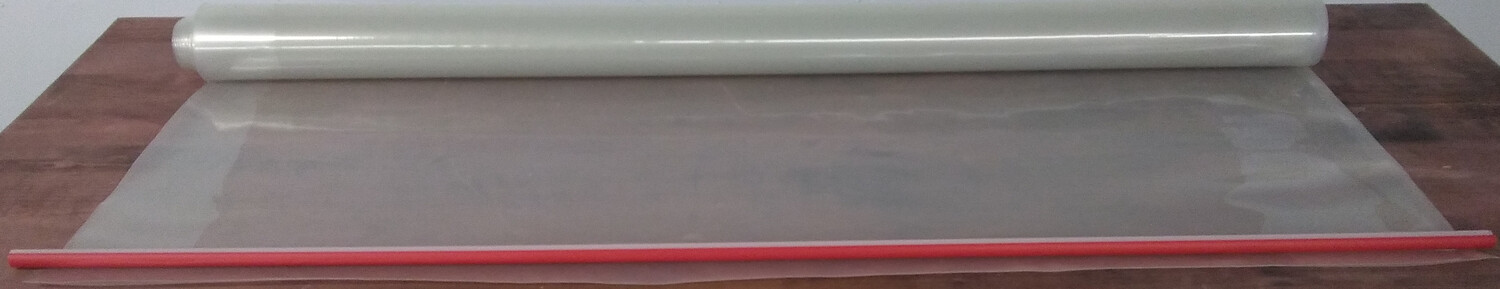

12'6" x 104" .020" Polyurethane Vacuum Veneering and Laminating Bag (XL1-P2)

Part Number: XL1-P2

Vacuum Bag – 12'6" x 104" – .020" Polyurethane

The XL1-P2 Vacuum Bag is a professional-grade solution for vacuum veneering, laminating, and composite pressing of long panels and architectural components. With a generous size of 12'6" x 104", this bag is specifically designed to handle extended-length workpieces, making it ideal for doors, tall cabinetry, wall panels, and custom furniture applications.

Constructed from .020" polyurethane, this vacuum bag offers maximum flexibility and superior conformability, allowing it to easily form around curved surfaces, contours, and intricate veneer layups. This makes it the preferred choice for woodworkers performing bent laminations, radius work, and detailed veneering, where even pressure distribution across complex shapes is critical to achieving high-quality results.

The XL1 size provides an excellent balance between length capacity and manageable width, making it a versatile option for shops that frequently process long parts but do not require oversized bag widths. When paired with a proper vacuum system, this bag ensures consistent clamping pressure across the entire work surface, improving glue bond strength and reducing the risk of voids or delamination.

Whether you are producing custom one-off pieces or small production runs, the XL1-P2 delivers reliable performance with the flexibility needed for demanding woodworking applications.

Key Features:

• Overall Size: 12'6" x 104"
• Material: .020" Polyurethane
• Designed for vacuum veneering and laminating
• Excellent flexibility for curved, contoured, and detailed work
• Ideal for doors, architectural panels, and long components
• Provides uniform pressure across complex assemblies

Vacuum Bag Size Chart

.020" vs .030" Poly Comparison Chart

This keeps your messaging consistent across all bags and frame presses:

Q.V.P. stocks a variety of vacuum veneering bags sizes ranging from a small 4' x 27" bag, to a large 12'6" x 104" bag! The most popular size vacuum veneering bag is the 8'6" x 52". This bag gives the woodworker the versatility to do small pieces, in addition to large 4' x 8'sheets. Q.V.P. can also make custom sized bags for those special jobs up to 9' wide x 80' long and anything in between.All Q.V.P. vacuum veneering bags are made with the same material on the top and bottom.

This means that the woodworker can now turn the bag over once the top side begins to see excessive wear. The bottom side will be fresh and can be used for more pressing. This feature will nearly double the life of the bag.

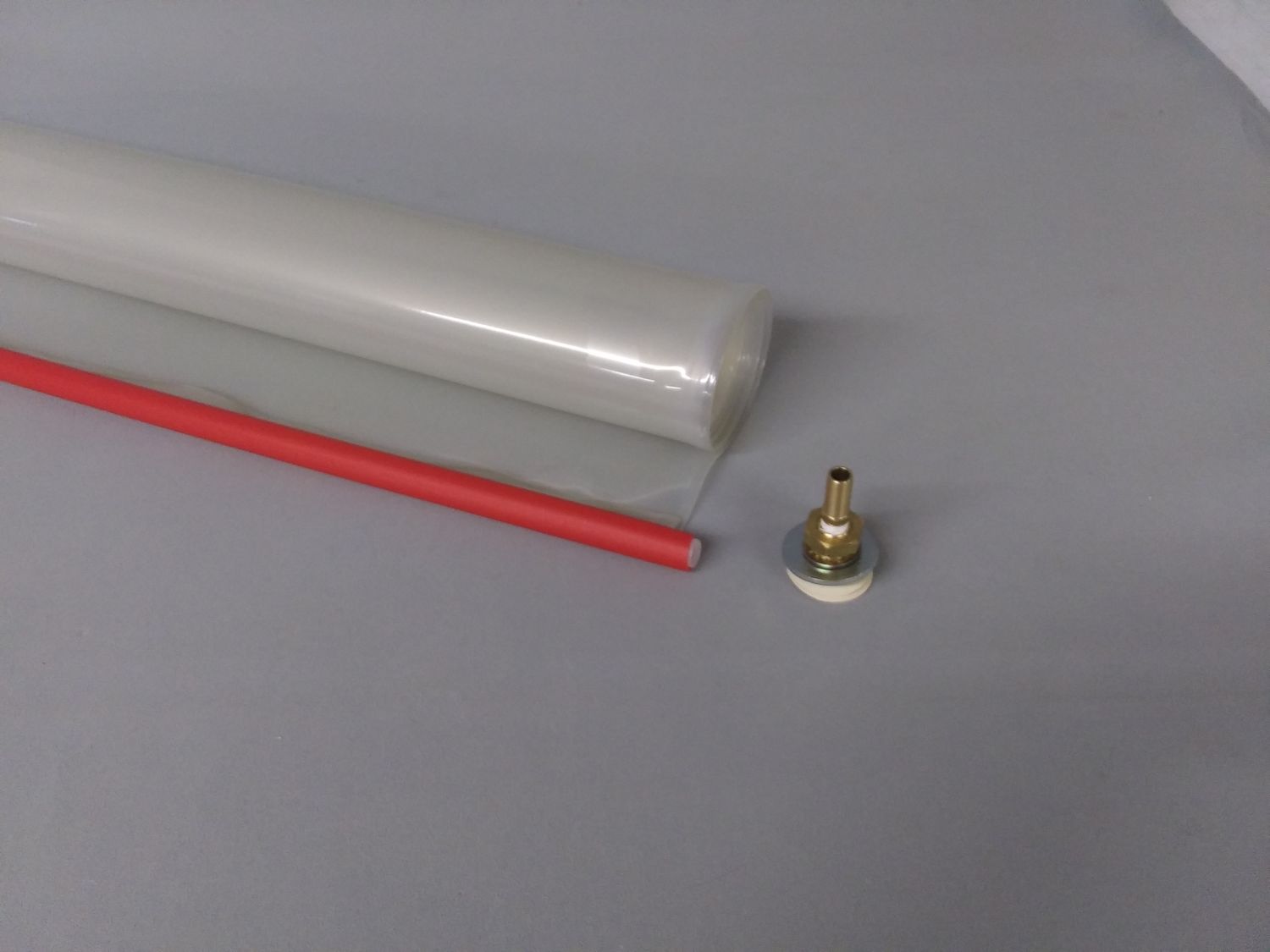

A Vacuum Connector Assembly, or VCA, is used to connect the bag to your vacuum tubing. It can be placed in the veneering bag at the most convenient location to meet your needs. Because it is not permanently attached to your vacuum bag, you can now flip the bag over, as described above, or use it on a different bag. Each bag comes with a flexible C-Closure System which prevents any leakage from the open end of the vacuum bag. This is true even when pressing large curved objects. With a poly bag, one end closure can be moved down to accommodate smaller jobs. VCA (3/8" I.D. tubing connector or VCA6 1/2" I.D. Tubing Connector are not included with the bag.

Call 978-562-4680 for CUSTOM SIZES.
