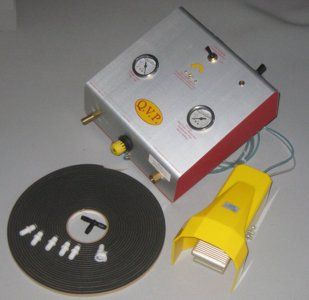

15.0 CFM Automatic Pneumatic Vacuum System (NU15FS)

Part Number: NU15FS
15.0 CFM Automatic Pneumatic Vacuum System – NU-Matic Super Industrial Series

The NU15FS is a powerful, fully automatic pneumatic vacuum system designed for professional veneering, laminating, and vacuum pressing applications. Delivering 15.0 CFM of vacuum flow, this system is ideal for large vacuum bags, production environments, and demanding shop work requiring fast evacuation and consistent pressure.

Powered entirely by compressed air, the NU15FS requires no electricity, making it a reliable, low-maintenance solution for both workshops and industrial settings. This unit demands 20 CFM at 85 PSI, making it well-suited for shops with moderate to high-capacity air compressor systems.

The NU-Matic system features an adjustable vacuum sensor that automatically regulates pressure within the vacuum bag or frame press. When vacuum levels drop, the system activates and restores pressure to the desired level, then shuts off once achieved. This automatic cycling eliminates the need for manual monitoring while maintaining consistent vacuum pressure throughout the press cycle.

The vacuum sensor can also be adjusted to reduce pressure when working with delicate materials, giving you greater control over your pressing process.

Key Features
• 15.0 CFM Vacuum Flow – Ideal for large vacuum bags and production environments
• Fully Automatic Operation – Maintains vacuum without manual monitoring
• All Pneumatic System – No electricity required
• Strong Air Capacity – Fast evacuation with efficient air usage
• Adjustable Vacuum Control – Fine-tune pressure for delicate or specialized work
• Simple & Reliable Design – Minimal maintenance, proven performance
• Upgradeable Platform – Expand within the NU-Matic system lineup

Typical Applications
• Veneering and laminating
• Vacuum bag and frame press applications
• Clamping jigs and fixtures
• Production and industrial shop use

Air Requirements
• Air Demand: 20 CFM @ 85 PSI
• Compressed air is required for operation

Bottom Line

The NU15FS delivers an excellent balance of power and efficiency for professional shops. With automatic operation, strong vacuum performance, and industrial reliability, it is a dependable solution for consistent, high-quality veneering and laminating results.
