15 CFM Automatic Pneumatic Vacuum System (NU15)
$1,300.00
15 CFM Super Indsutrial automatic vacuum system
In stock
Product Details
Part Number: NU15

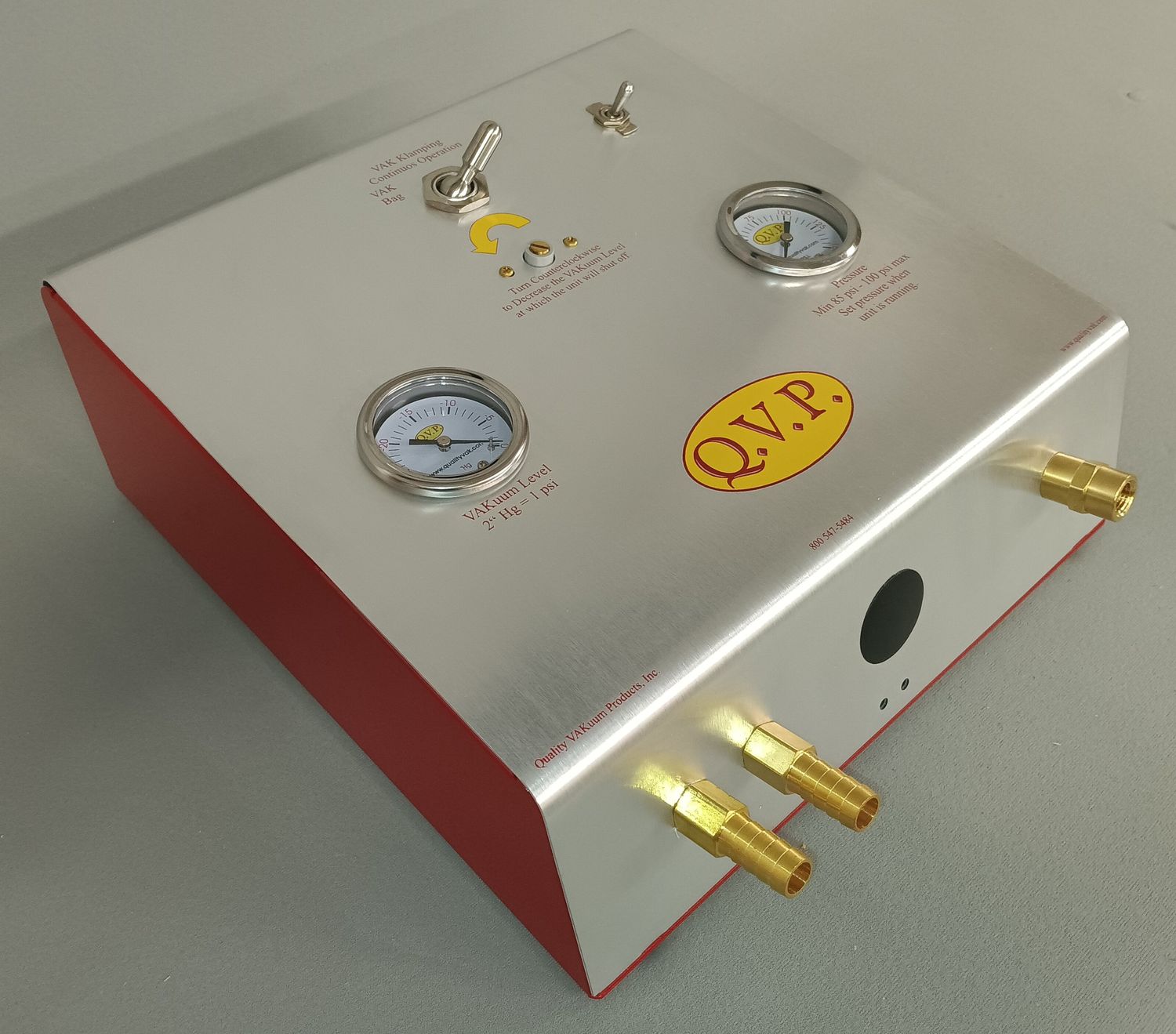

15 CFM Automatic Pneumatic Vacuum System – NU-Matic Super Industrial Series
The NU15 is a high-capacity, fully automatic pneumatic vacuum system designed for demanding veneering, laminating, and vacuum pressing applications. Delivering 15 CFM of vacuum flow, this system provides increased performance for larger bags, multiple presses, and production environments where faster evacuation and consistent pressure are critical.
Powered entirely by compressed air, the NU15 requires no electricity, making it a reliable and low-maintenance solution for shops that prefer all-pneumatic systems. This unit demands 20 CFM at 85 PSI, providing the airflow needed for strong, consistent vacuum performance.
The NU-Matic system features an adjustable vacuum sensor that automatically regulates pressure within the vacuum bag or frame press. When vacuum levels drop, the system activates and restores pressure to the desired level, then shuts off once achieved. This automatic cycling reduces air consumption, minimizes operator involvement, and ensures consistent, repeatable results.
Key Features
- 15 CFM Vacuum Flow: Increased capacity for larger projects and faster evacuation
- Fully Automatic Operation: Vacuum sensor maintains consistent pressure without manual monitoring
- All Pneumatic System: No electricity required—runs entirely on compressed air
- Adjustable Vacuum Control: Fine-tune vacuum levels to match specific applications
- Efficient Air Usage: System cycles on and off to reduce compressed air demand
- Production-Ready Performance: Ideal for multi-bag setups and high-use environments
- Upgradeable Platform: All NU-Matic systems can be upgraded without losing your original investment
Typical Applications
- Veneering and laminating
- Vacuum bag pressing
- Frame press operations
- Multi-bag systems with manifolds
- Bent laminations
- Composite layups
Air Requirements
- Air Demand: 20 CFM @ 85 PSI
- Compressed air is required for operation
Bottom Line
The NU15 is a powerful, production-level vacuum system designed for shops that need higher airflow and faster performance. With fully automatic operation and a rugged all-pneumatic design, it delivers reliable, consistent results for demanding vacuum pressing applications.
NU-Matic Pneumatic Vacuum System Comparison
| Model | Series | Air Flow (CFM) | Price |
|---|---|---|---|
| NU20 | Mega Industrial | 20.0 CFM | $1,355 |
| NU15 | Super Industrial | 15.0 CFM | $1,290 |
| NU10 | Industrial | 10.0 CFM | $1,092 |
| NU6 | Super-Pro | 5.2 CFM | $835 |
| NU4 | Pro | 3.2 CFM | $705 |
| NU2 | Standard | 1.6 CFM | $605 |
