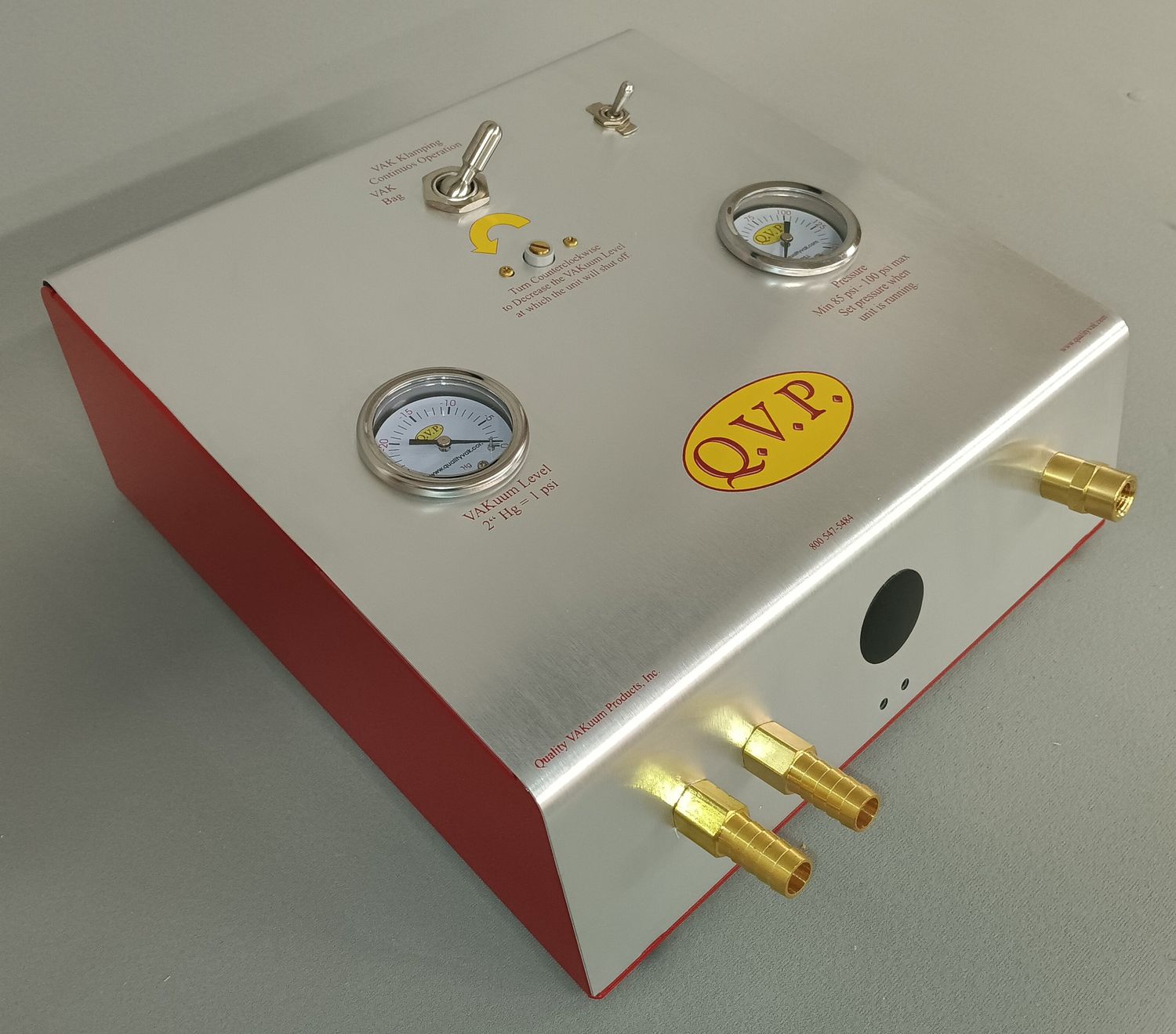

20.0 CFM Automatic Pneumatic Vacuum System (NU20)

Part Number: NU20
20.0 CFM Automatic Pneumatic Vacuum System – NU-Matic Mega Industrial Series

The NU20 is a high-output, fully automatic pneumatic vacuum system designed for large-scale veneering, laminating, and vacuum pressing applications. Delivering an impressive 20.0 CFM of vacuum flow, this system is built for large vacuum bags, production environments, and heavy-duty shop use where fast evacuation and consistent vacuum levels are critical.

Powered entirely by compressed air, the NU20 requires no electricity, making it a dependable, low-maintenance solution for industrial settings. This unit demands 26 CFM at 85 PSI, so it is best suited for shops with sufficient air compressor capacity to support high-demand equipment.

The NU-Matic system features an adjustable vacuum sensor that automatically regulates pressure within the vacuum bag or frame press. When vacuum levels drop, the system activates and restores pressure to the desired level, then shuts off once achieved. This automatic cycling eliminates the need for manual monitoring while maintaining consistent vacuum pressure throughout the press cycle.

The vacuum sensor can also be adjusted to reduce pressure when working with delicate materials, giving you greater control over your pressing process.

Key Features
20.0 CFM Vacuum Flow: Ideal for large vacuum bags and high-production environments
Fully Automatic Operation: Vacuum sensor maintains pressure without manual monitoring
All Pneumatic System: No electricity required—runs entirely on compressed air
High Air Capacity: Designed for rapid evacuation and large-volume pressing
Adjustable Vacuum Control: Fine-tune pressure for delicate or specialized work
Simple & Reliable Design: Proven performance with minimal maintenance
Upgradeable Platform: Compatible across the NU-Matic system lineup

Typical Applications
Large-scale veneering projects
Architectural panel laminating
High-volume vacuum bag pressing
Production shop environments

Air Requirements
Air Demand: 26 CFM @ 85 PSI
Compressed air is required for operation

Bottom Line

The NU20 is a powerhouse pneumatic vacuum system built for serious production work. With rapid vacuum draw, automatic operation, and industrial-grade performance, it is the ideal solution for large presses and high-demand applications where efficiency and consistency matter most.

Part Number: NU20
20.0 CFM Automatic Pneumatic Vacuum System – NU-Matic Mega Industrial Series

The NU20 is a high-output, fully automatic pneumatic vacuum system designed for large-scale veneering, laminating, and vacuum pressing applications. Delivering 20.0 CFM of vacuum flow, this system is ideal for large vacuum bags, production environments, and heavy-duty shop use.

Powered entirely by compressed air, the NU20 requires no electricity, making it a simple, reliable, and low-maintenance solution. This unit demands 26 CFM at 85 PSI, so it is best suited for shops with adequate air compressor capacity.

The NU-Matic system features an adjustable vacuum sensor that automatically regulates pressure within the vacuum bag or frame press. When vacuum levels drop, the system activates and restores pressure to the desired level, then shuts off once achieved. This automatic cycling eliminates the need for manual monitoring while maintaining consistent vacuum pressure throughout the press cycle.

The vacuum sensor can also be adjusted to reduce pressure when working with delicate materials, giving you greater control over your pressing process.

Key Features
20.0 CFM Vacuum Flow: Ideal for large vacuum bags and production environments
Fully Automatic Operation: Vacuum sensor maintains pressure without manual monitoring
All Pneumatic System: No electricity required—runs entirely on compressed air
High Air Capacity: Built for rapid evacuation and large-volume pressing
Adjustable Vacuum Control: Fine-tune pressure for delicate or specialized work
Simple & Reliable Design: Proven performance with minimal maintenance
Upgradeable Platform: Easily upgrade within the NU-Matic system lineup

Typical Applications
Large veneering projects
Architectural laminating
Large vacuum bag pressing
Production and industrial shop use

Air Requirements
Air Demand: 26 CFM @ 85 PSI
Compressed air is required for operation

Bottom Line

The NU20 is a powerful, automatic vacuum solution for large-scale applications. With high air flow and hands-free operation, it delivers fast evacuation, consistent pressure, and reliable performance in demanding production environments.

---
