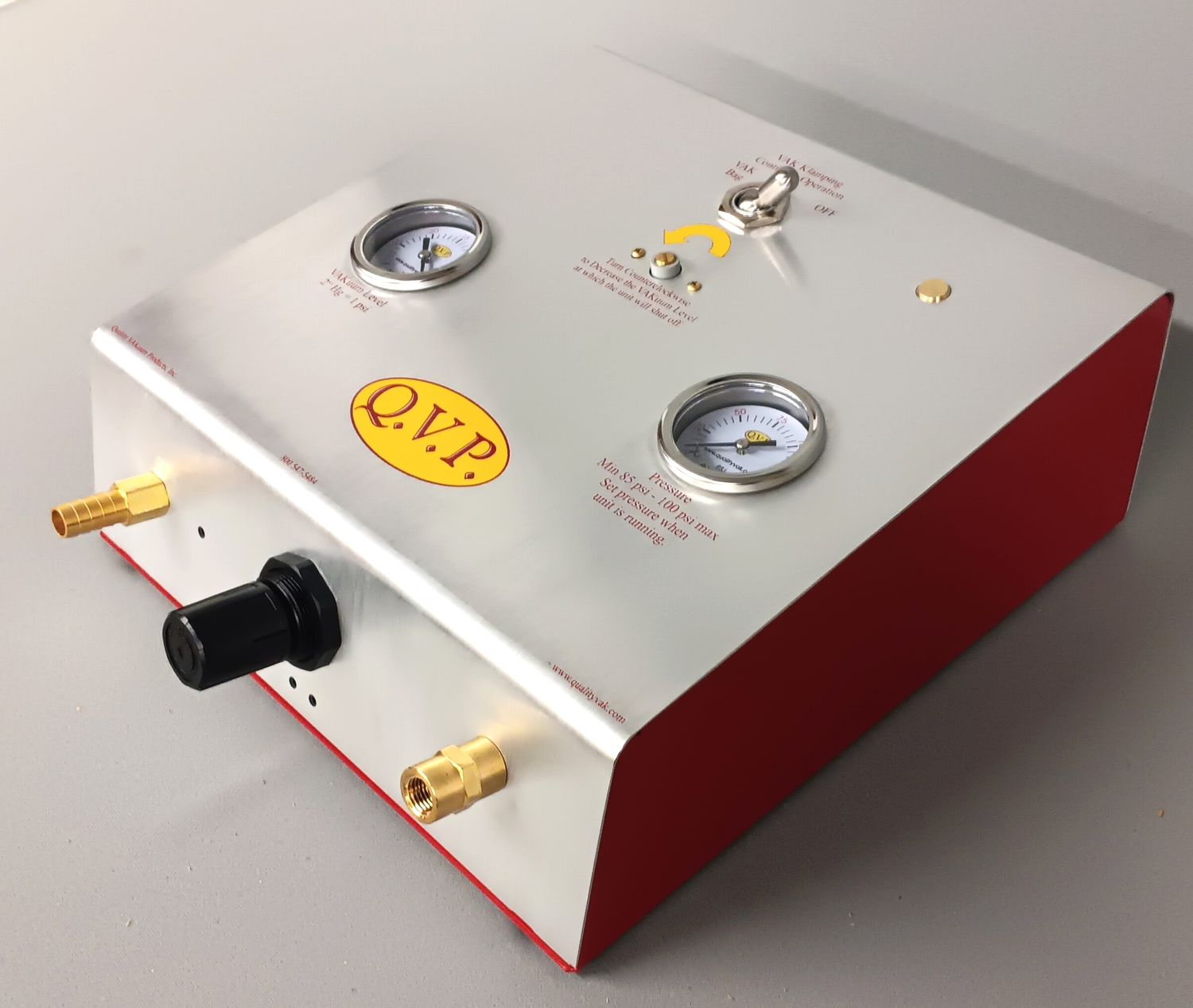

5.2 CFM Automatic Pneumatic Vacuum System (NU6)

Part Number: NU6
5.2 CFM Automatic Pneumatic Vacuum System – NU-Matic Super-Pro Series

The NU6 is a powerful, fully automatic pneumatic vacuum system designed for mid-size veneering, laminating, and vacuum pressing applications. Delivering 5.2 CFM of vacuum flow, this system is ideal for larger vacuum bags, growing production shops, and demanding projects that require faster evacuation and consistent pressure.

Powered entirely by compressed air, the NU6 requires no electricity, making it a simple, reliable, and low-maintenance solution. This unit demands 6.5 CFM at 85 PSI, making it a great fit for shops with moderate air compressor capacity.

The NU-Matic system features an adjustable vacuum sensor that automatically regulates pressure within the vacuum bag or frame press. When vacuum levels drop, the system activates and restores pressure to the desired level, then shuts off once achieved. This automatic cycling eliminates the need for manual monitoring while maintaining consistent vacuum pressure throughout the press cycle.

The vacuum sensor can also be adjusted to reduce pressure when working with delicate materials, giving you greater control over your pressing process.

Key Features
• 5.2 CFM Vacuum Flow – Ideal for larger vacuum bags and mid-size shop production
• Fully Automatic Operation – Maintains vacuum without manual monitoring
• All Pneumatic System – No electricity required
• Moderate Air Consumption – Strong performance with manageable air demand
• Adjustable Vacuum Control – Fine-tune pressure for delicate materials
• Simple & Reliable Design – Minimal maintenance, proven performance
• Upgradeable Platform – Expand within the NU-Matic system lineup

Typical Applications
• Medium to large veneering projects
• Laminating applications
• Vacuum bag pressing
• Growing production shops

Air Requirements
• Air Demand: 6.5 CFM @ 85 PSI
• Compressed air is required for operation

Bottom Line

The NU6 offers a strong balance of power and efficiency, making it an excellent choice for shops ready to step up in capacity. With faster vacuum draw and automatic operation, it delivers consistent, reliable results for more demanding applications.
