F-P2

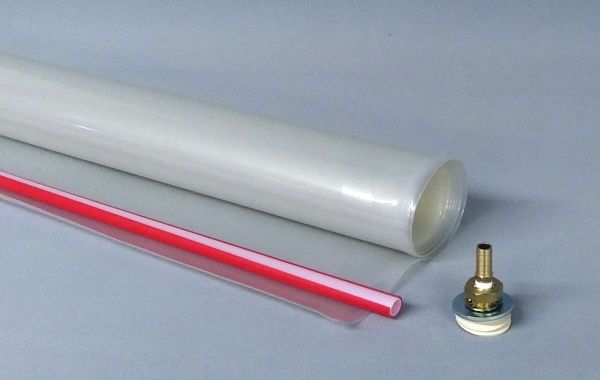

4' x 27" 20 mil Polyurethane Vacuum Bag

For Veneering and Laminating. Press up to 3 x 2 panels

• Up to 1,800 lbs. per square foot
• Even and uniform pressure
• Extremely flexible

Note - This bag comes with the c-channel closure. You will need to buy a connector for you vacuum line separately.

Q.V.P. stocks a variety of vacuum veneering bags sizes ranging from a small 4' x 27" bag, to a large 12'6" x 104" bag! The most popular size vacuum veneering bag is the 8'6" x 52". This bag gives the woodworker the versatility to do small pieces, in addition to large 4' x 8'sheets. Q.V.P. can also make custom sized bags for those special jobs up to 9' wide x 80' long and anything in between.All Q.V.P. vacuum veneering bags are made with the same material on the top and bottom.

This means that the woodworker can now turn the bag over once the top side begins to see excessive wear. The bottom side will be fresh and can be used for more pressing. This feature will nearly double the life of the bag.

A Vacuum Connector Assembly, or VCA, is used to connect the bag to your vacuum tubing. It can be placed in the veneering bag at the most convenient location to meet your needs. Because it is not permanently attached to your vacuum bag, you can now flip the bag over, as described above, or use it on a different bag. Each bag comes with a flexible C-Closure System which prevents any leakage from the open end of the vacuum bag. This is true even when pressing large curved objects. With a poly bag, one end closure can be moved down to accommodate smaller jobs. VCA (3/8" I.D. tubing connector or VCA6 1/2" I.D. Tubing Connector are not included with the bag.

Call 800 547-5484 for CUSTOM SIZES.
