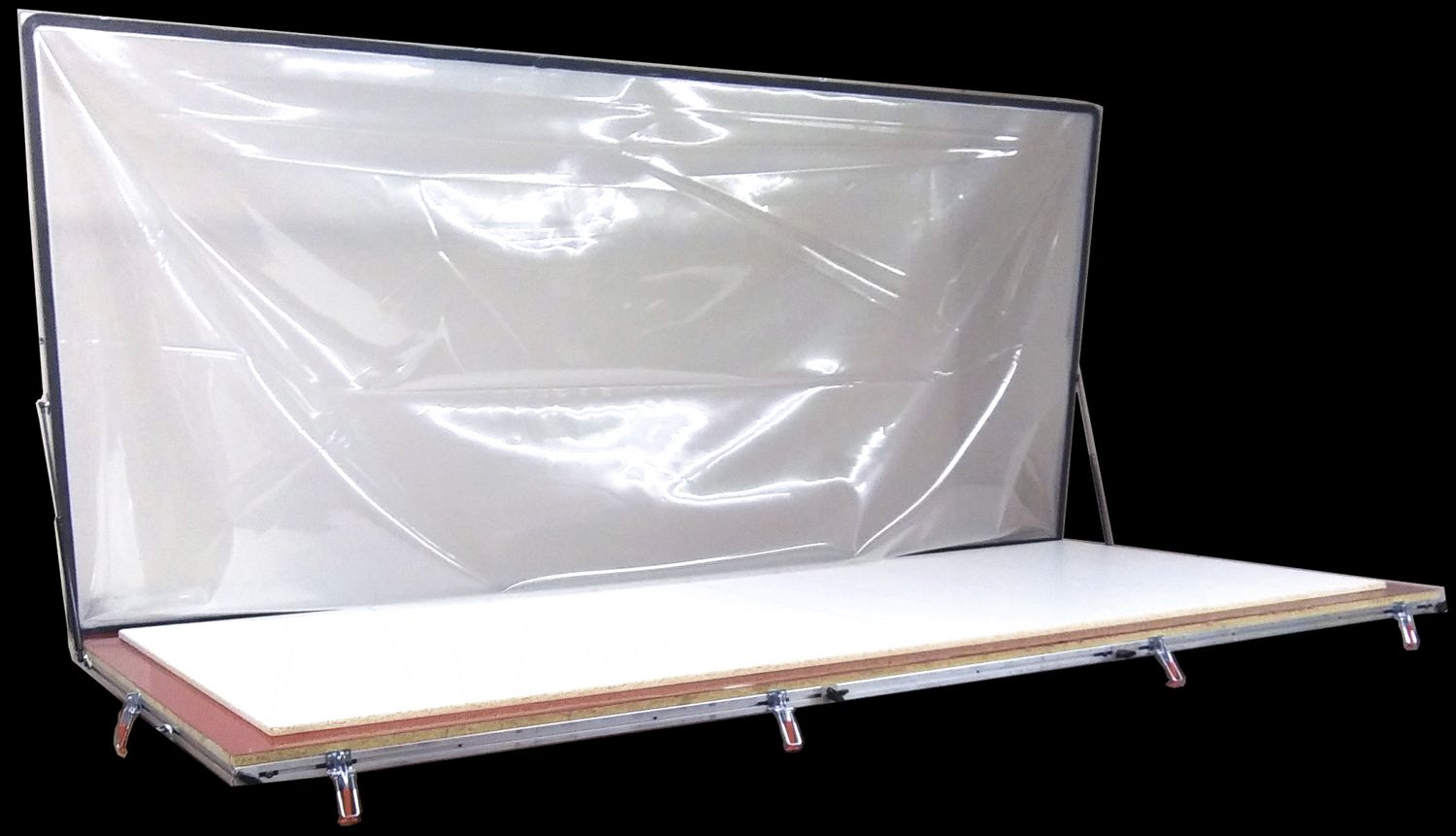

Flip-Top Vacuum Frame Press – 102" x 54" Inside Dimension (FP48-6-2)

Vacuum Frame Press

Part Number: FP48-6-2
Flip-Top Vacuum Frame Press – 102" x 54" Inside Dimension

The FP48-6-2 Flip-Top Vacuum Frame Press is designed for efficient and reliable veneering of flat panels up to 4' x 8'. With an inside pressing area of 102" x 54", this press provides ample working space for standard sheet goods, making it an excellent choice for both professional shops and serious woodworking environments.

This unit is equipped with a .020" polyurethane membrane top featuring 6" gusseted corners. This configuration allows the membrane to conform over multiple parts, making it ideal for stacking two to three 3/4" thick panels in a single pressing cycle. The .020" material offers excellent flexibility for detailed conformity while maintaining durability for everyday use.

The frame press features a heavy-duty aluminum construction engineered for strength, accuracy, and long-term performance. The flip-top design allows for easy loading and unloading, improving workflow and reducing setup time.

The frame is supplied in kit form for ease of shipping and assembly. Each aluminum frame section is pre-applied with double-sided adhesive tape on both the outer edge and underside, allowing for secure attachment of the polyurethane membrane. Corner angle irons slip into the frame and are fastened with screws, providing a straightforward and rigid assembly process.

Detailed instructions are included to guide you through both frame assembly and proper table construction. Please note that the table and baseboard are not included and must be provided by the user, allowing flexibility to customize your setup to fit your shop requirements.

Key Features:

• Inside pressing area: 102" x 54"
• Ideal for up to 4' x 8' flat panels
• .020" polyurethane membrane for excellent conformity
• 6" gusseted corners for increased capacity and flexibility
• Capable of stacking 2–3 panels (3/4" thick) per cycle
• Flip-top design for easy operation
• Heavy-duty aluminum frame construction
• Pre-applied double-sided tape for membrane installation
• Simple bolt-together assembly with corner angle irons
• Ships in kit form for cost-effective delivery
• Includes detailed assembly and table construction instructions

The FP48-6-2 delivers consistent, professional veneering results while maximizing efficiency through multi-panel capability and user-friendly design.

FP48-6-2 vs. FP48-6-3 – Which One Is Right for You?

Both models share the same frame size, flip-top design, and overall construction. The key difference comes down to the polyurethane membrane thickness and how the press will be used in your shop.

Quick Recommendation

• Choose FP48-6-2 (.020") if you need maximum flexibility for curved work, detailed veneering, or general shop use.
• Choose FP48-6-3 (.030") if your focus is flat panel production, durability, and long-term performance in a higher-volume environment.

In short:
.020" = flexibility and versatility
.030" = durability and production efficiency

Call 978-562-4680 for CUSTOM SIZES.
