Flip-Top Vacuum Frame Press – 102" x 54" Inside Dimension (FP48-6-3)

Part Number: FP48-6-3

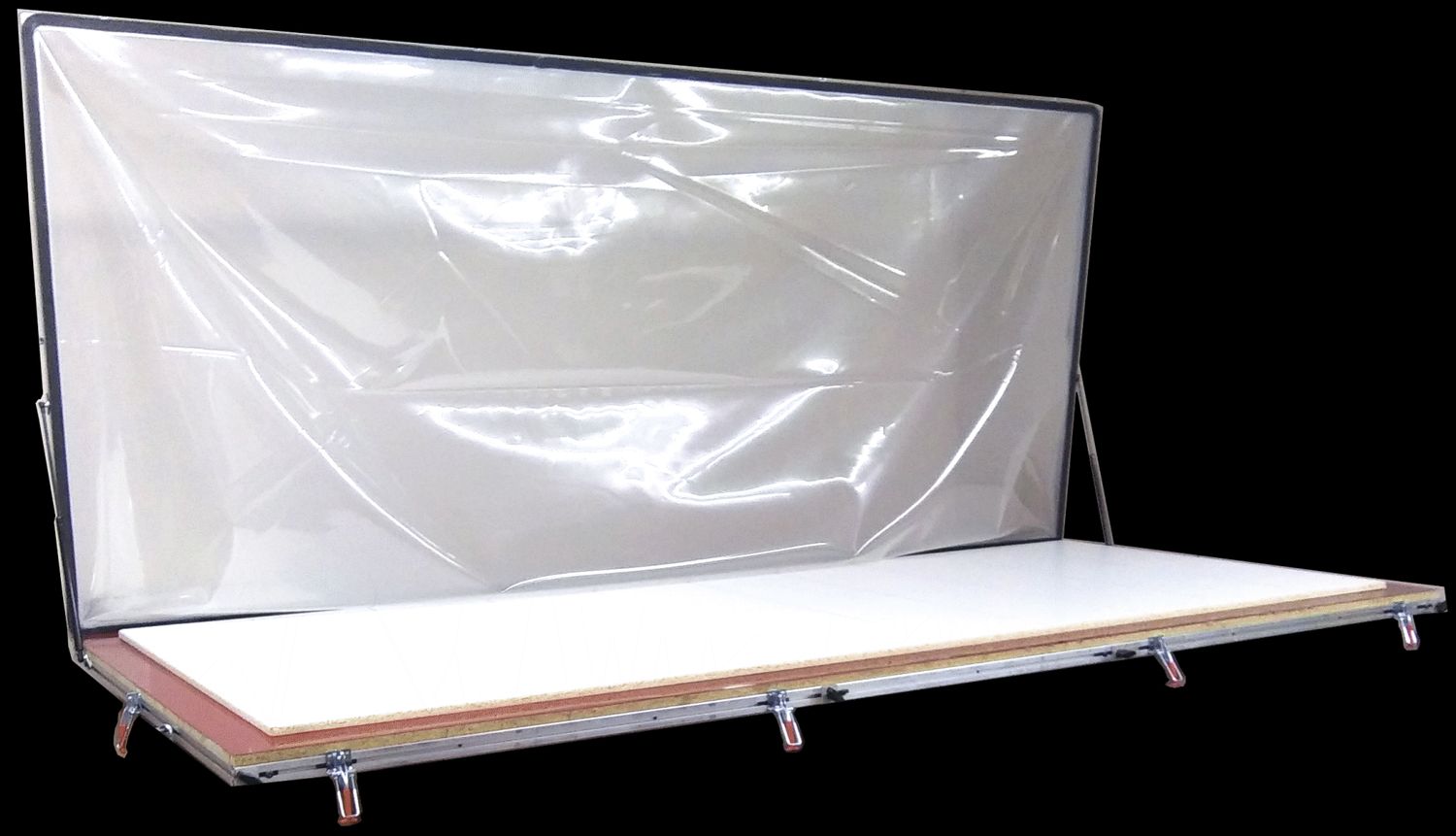

Flip-Top Vacuum Frame Press – 102" x 54" Inside Dimension

The FP48-6-3 Flip-Top Vacuum Frame Press is designed for efficient, high-performance veneering of flat panels up to 4' x 8'. With an inside pressing area of 102" x 54", this press provides ample capacity for standard sheet goods and production-oriented workflows.

This unit is equipped with a .030" polyurethane membrane top featuring 6" gusseted corners. The thicker .030" material offers increased durability, making it an excellent choice for panel production and repeated daily use. While slightly less flexible than thinner membranes, it provides longer service life and improved resistance around sharp edges and demanding applications. The 6" gusseted corners allow for stacking multiple parts, accommodating two to three 3/4" thick panels in a single pressing cycle.

The frame press features a heavy-duty aluminum construction engineered for strength, accuracy, and long-term reliability. Its flip-top design allows for quick loading and unloading, helping streamline production and reduce downtime between cycles.

The frame is supplied in kit form for ease of shipping and assembly. Each aluminum frame section is pre-applied with double-sided adhesive tape on both the outer edge and underside for secure installation of the polyurethane membrane. Corner angle irons slip into the frame and are fastened with screws, creating a solid and straightforward assembly process.

Detailed instructions are included to guide you through both frame assembly and proper table construction. Please note that the table and baseboard are not included and must be provided by the user, allowing flexibility to build a support structure that fits your specific shop needs.

Key Features:

• Inside pressing area: 102" x 54"
• Ideal for up to 4' x 8' flat panels
• .030" polyurethane membrane for increased durability
• 6" gusseted corners for enhanced capacity
• Designed for production environments and repeated use
• Capable of stacking 2–3 panels (3/4" thick) per cycle
• Flip-top design for efficient operation
• Heavy-duty aluminum frame construction
• Pre-applied double-sided tape for membrane installation
• Simple bolt-together assembly with corner angle irons
• Ships in kit form for cost-effective delivery
• Includes detailed assembly and table construction instructions

The FP48-6-3 is built for shops that demand durability and efficiency, delivering consistent veneering results in higher-volume production settings.

FP48-6-2 vs. FP48-6-3 – Which One Is Right for You?

Both models share the same frame size, flip-top design, and overall construction. The key difference comes down to the polyurethane membrane thickness and how the press will be used in your shop.

Quick Recommendation

• Choose FP48-6-2 (.020") if you need maximum flexibility for curved work, detailed veneering, or general shop use.
• Choose FP48-6-3 (.030") if your focus is flat panel production, durability, and long-term performance in a higher-volume environment.

In short:
.020" = flexibility and versatility
.030" = durability and production efficiency

Call 978-562-4680 for CUSTOM SIZES.

Video - How to assemble a vacuum frame press

Video on what is included with a vacuum frame press from Q.V.P.
