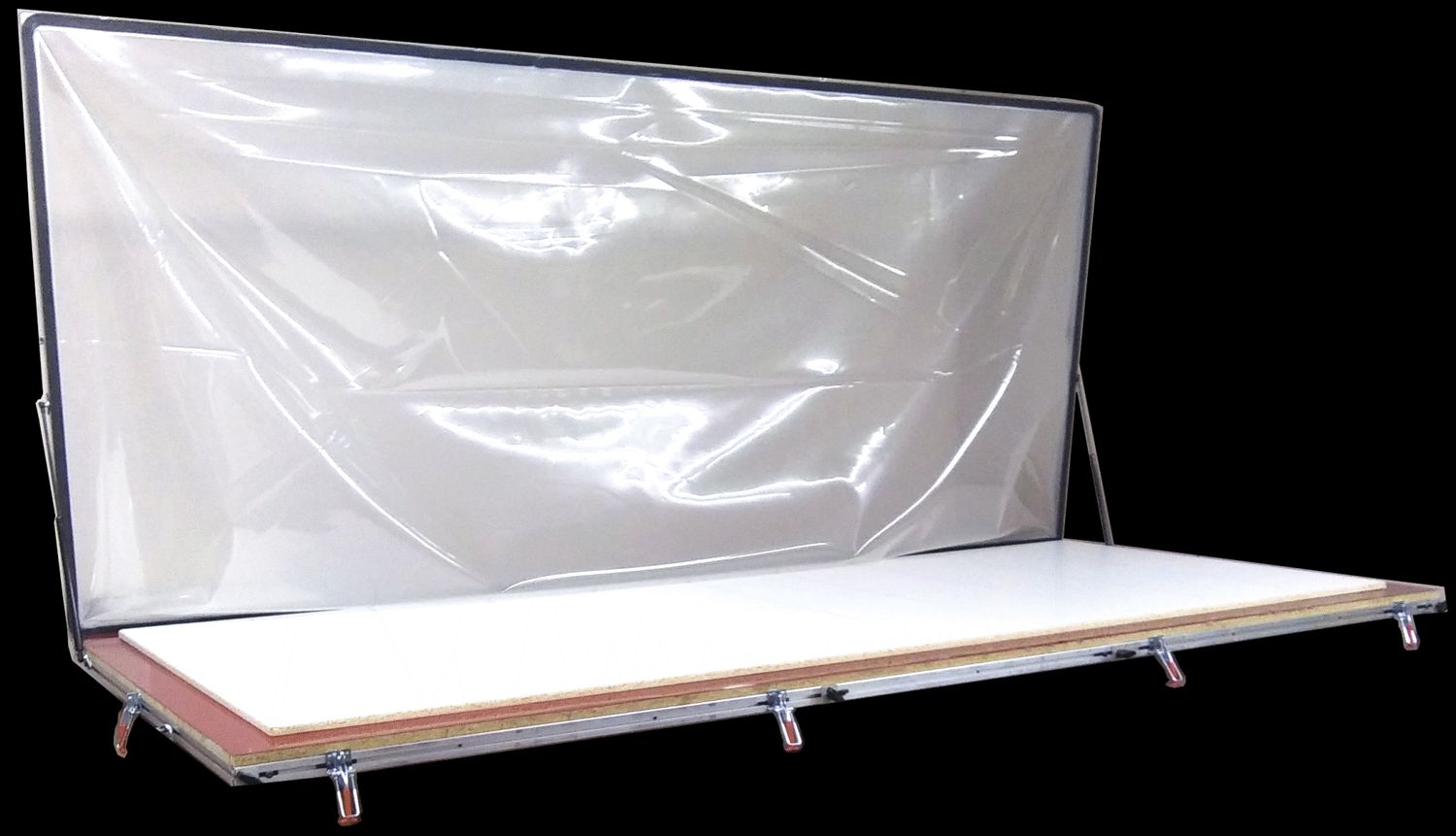

Flip-Top Vacuum Frame Press – 126" x 54" Inside Dimension (FP410-6-2)

Part Number: FP410-6-2

Flip-Top Vacuum Frame Press – 126" x 54" Inside Dimension

The FP410-6-2 Flip-Top Vacuum Frame Press is designed for efficient veneering of long panels up to 4' x 10'. With an inside pressing area of 126" x 54", this press provides extended length capacity while maintaining a more compact width, making it ideal for shops working with long, narrower panels or optimizing floor space.

This unit is equipped with a .020" polyurethane membrane top featuring 6" gusseted corners. The .020" membrane offers excellent flexibility, allowing it to conform easily over curves, contours, and detailed work. The gusseted corners provide added height capacity, making it possible to stack two to three 3/4" thick panels in a single pressing cycle.

Constructed from heavy-duty aluminum, the frame is engineered for strength, precision, and long-term durability. The flip-top design allows for easy loading and unloading, improving workflow efficiency and reducing setup time.

The frame is supplied in kit form for ease of shipping and straightforward assembly. Each aluminum section comes with pre-applied double-sided adhesive tape on the outer edge and underside for secure membrane installation. Corner angle irons slide into place and are fastened with screws, creating a rigid and reliable structure.

Detailed instructions are included for both frame assembly and proper table construction. Please note that the table and baseboard are not included and must be provided by the user.

Key Features:

• Inside pressing area: 126" x 54"
• Ideal for up to 4' x 10' panels and long, narrow layouts
• .020" polyurethane membrane for maximum flexibility
• 6" gusseted corners for increased height capacity
• Capable of stacking 2–3 panels (3/4" thick) per cycle
• Flip-top design for efficient operation
• Heavy-duty aluminum frame construction
• Ships in kit form
• Includes detailed assembly and table construction instructions

Membrane Comparison – Choosing the Right Top

Quick Recommendation

Choose .020" (FP410-6-2) for maximum flexibility and versatility
Choose .030" (FP410-6-3) for durability and production efficiency

In simple terms:
.020" = flexibility and conformity

.030" = strength and longevity

Call 978-562-4680 for CUSTOM SIZES.

Video - How to assemble a vacuum frame press

Video on what is included with a vacuum frame press from Q.V.P.
